Basic Chart Options in Define

After learning how to create a visualization using the Define panel, this guide will help you explore the various customization options for Basic Charts in One Model.

Note: Users should be familiar with how to create a basic chart/table. If you're not, please refer to the Define (Explore in Storyboards) Guide.

Series Types

If the visualization type is Basic Chart, you can configure individual metrics by clicking on the Metric Chip in the Define Panel. By default, the series type is Column. Any metric can be shown as one of these 5 Series Types: Spline, Column, Line, Area, or Area Spline.

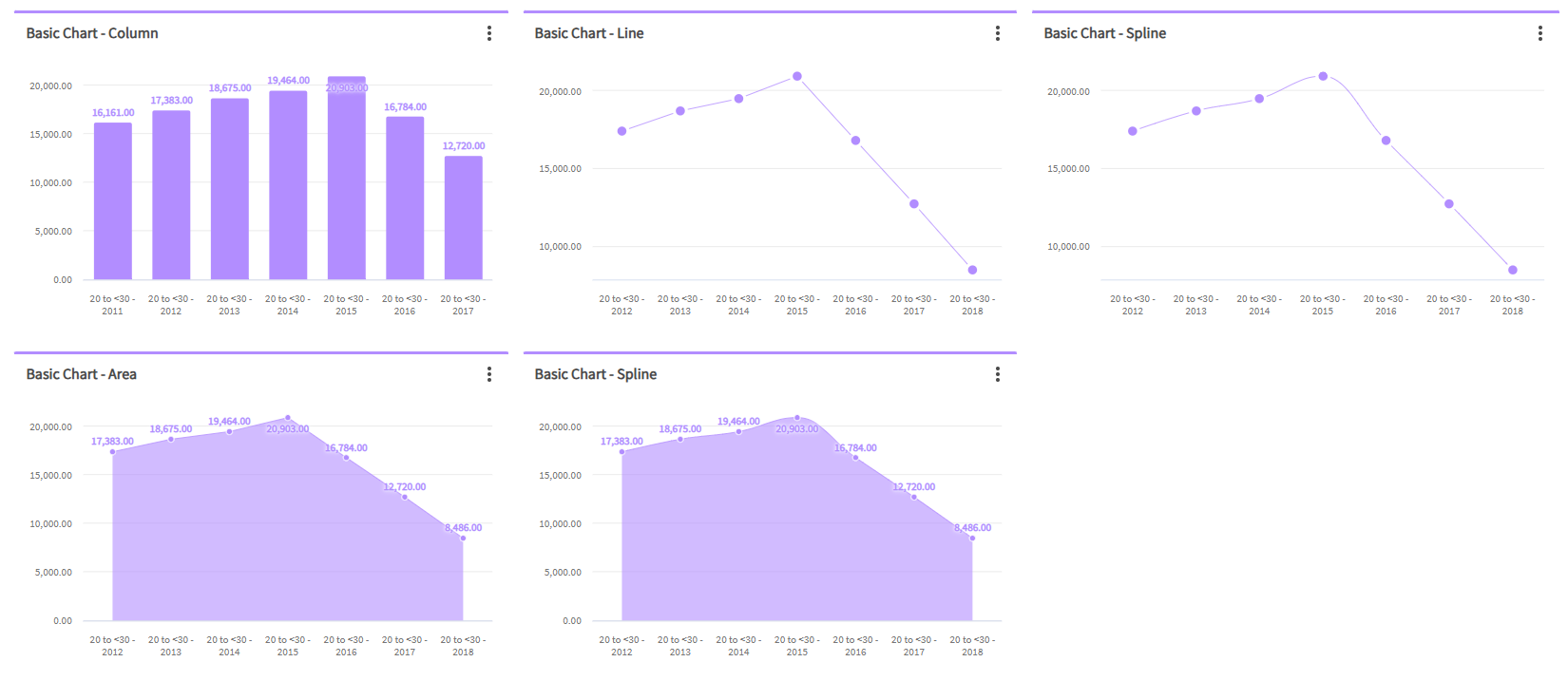

Below are examples that show a metric across time based on different Series Type:

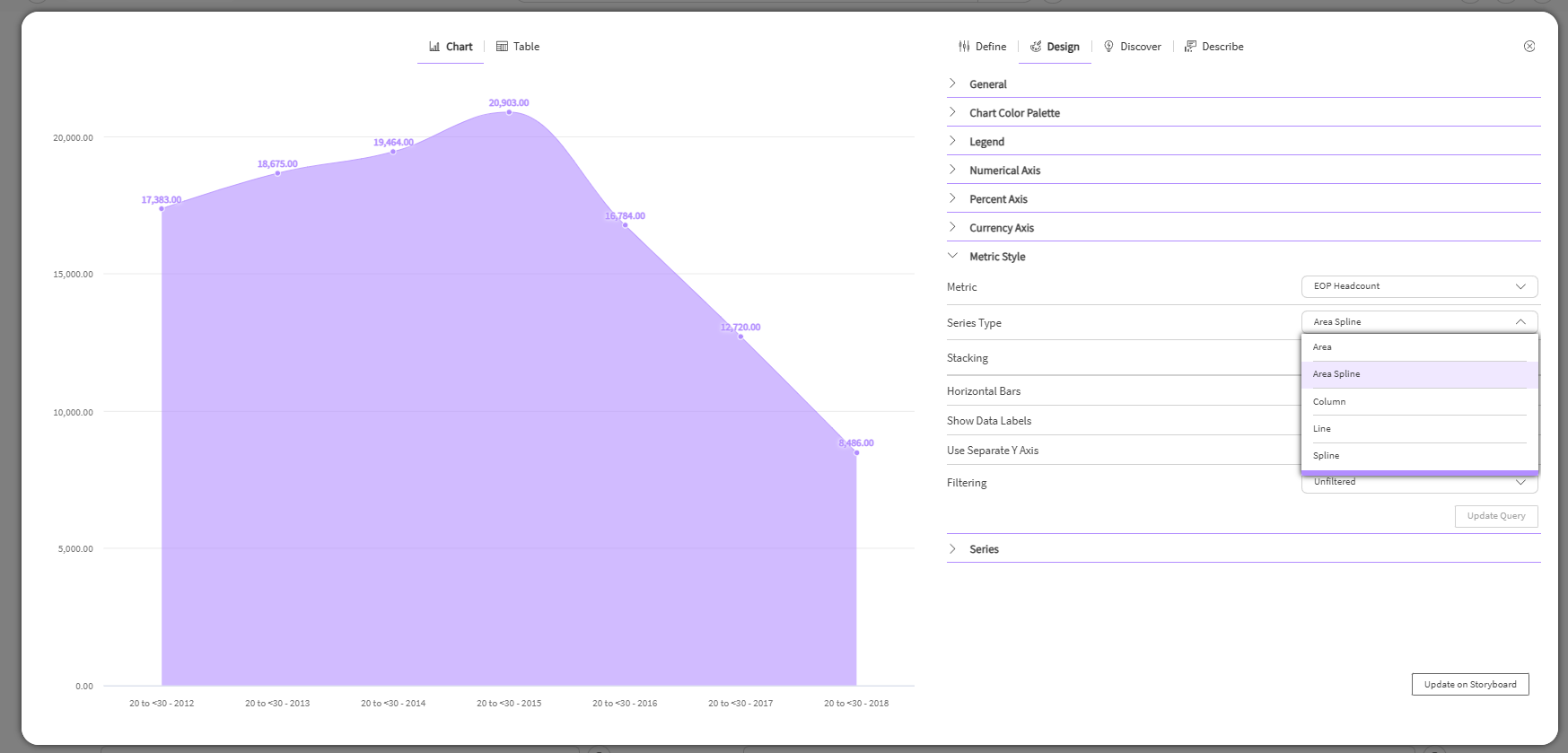

These options are also available for configuration under the Design tab >  Metric Style > Series Type.

Horizontal Column Charts

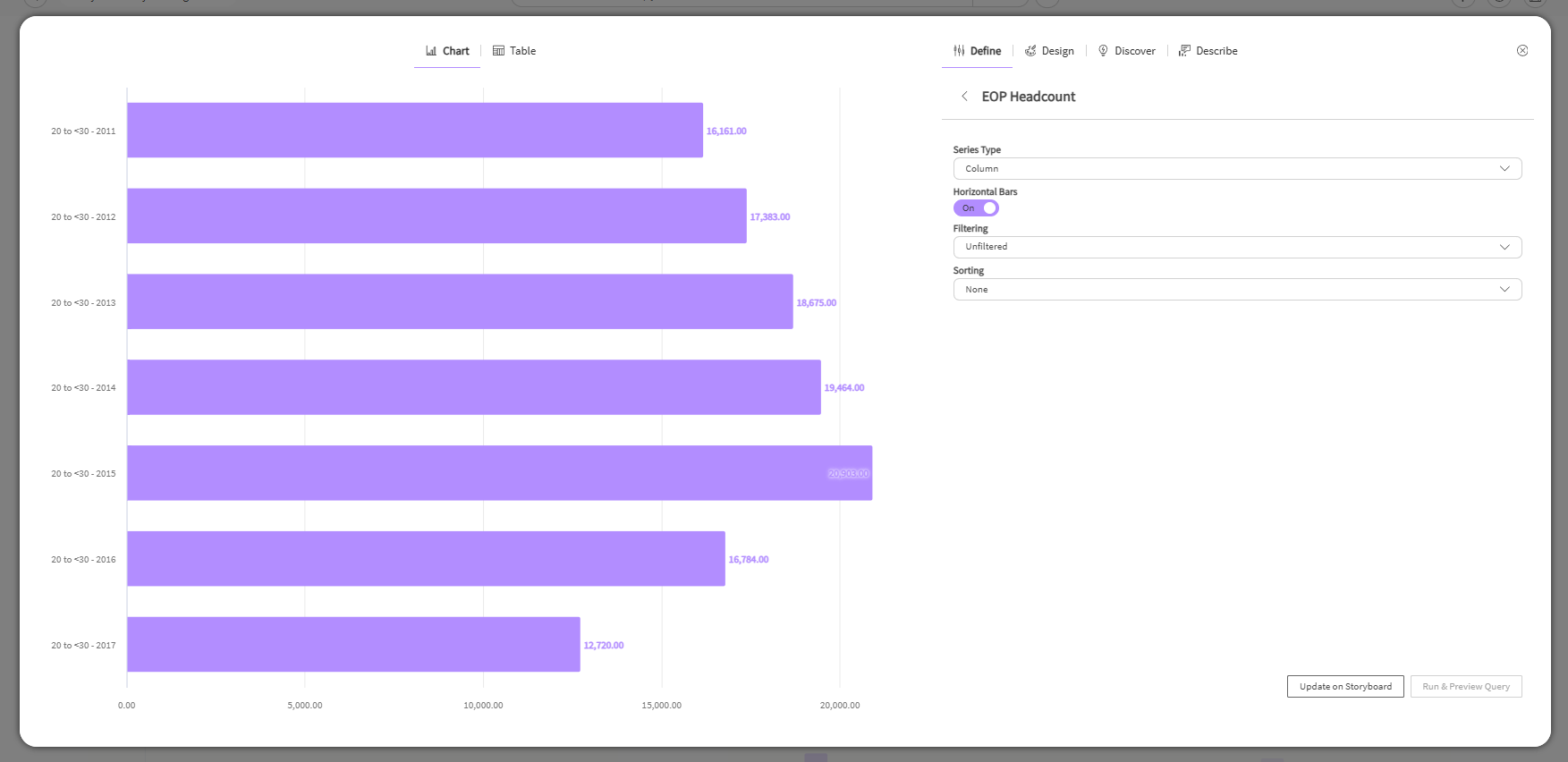

The second option when you click on the Metric chip in the Define Panel will be the Horizontal Bars toggle. This option is only available with the Column Series.

This toggle options can also be found under the Design tab > Metric Style > Horizontal Bars.

Stacking

Stacking a Metric with a Dimension.

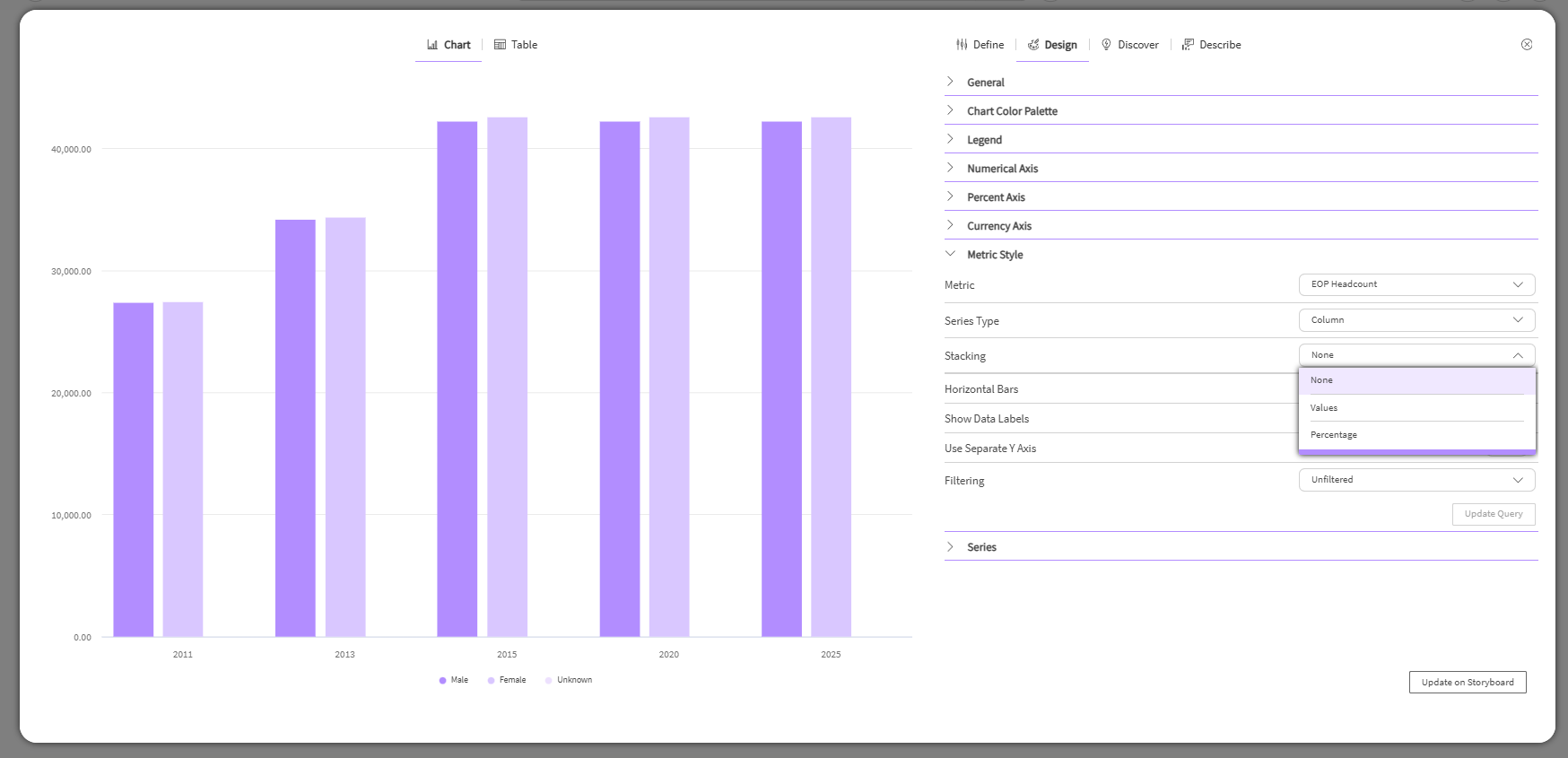

All Basic Charts can be stacked. This configuration option is under Design> Metric Style > Stacking.  By default stacking is not enabled and selection is None.

Below are examples of stacking a Column chart with Values and Percentages.

Below are a few more examples of different Basic Chart Types with stacking applied.

Stacking using Diverging Bar Chart

The Diverging Bar Chart options is available under the Design tab  > Metric Style > Stacking if the query in a Basic Chart meets the following criteria:

• Two Metrics - includes exactly two metrics in your metric query
• Two Dimension Nodes - includes one metric and one non-pivoted dimension with exactly two nodes selected.

Below are examples of Define queries to enable the Diverging Bar option

• Selecting Two Dimension Nodes

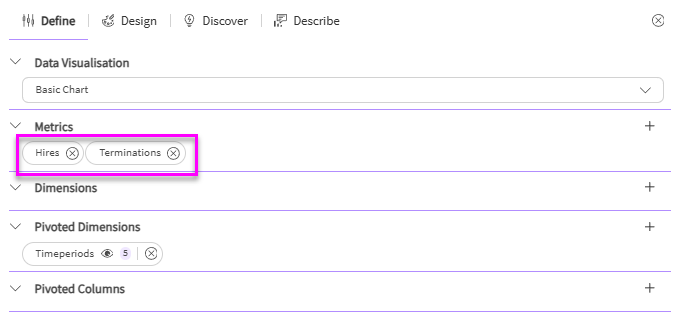

• Selecting Two Metrics

Multiple Metrics

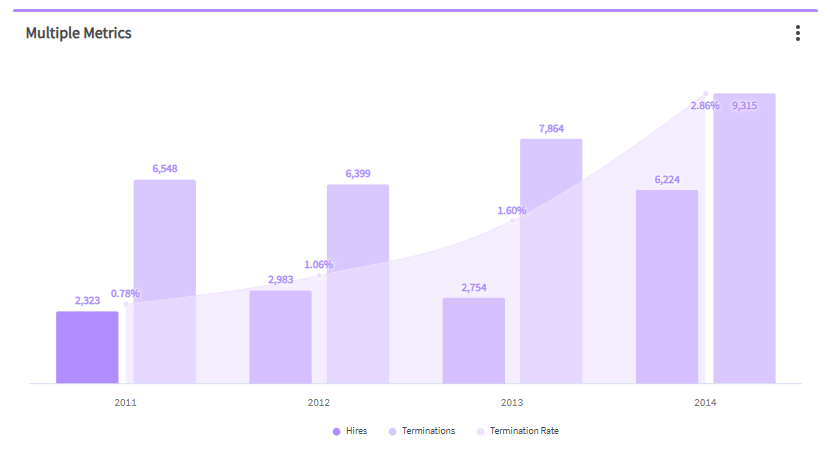

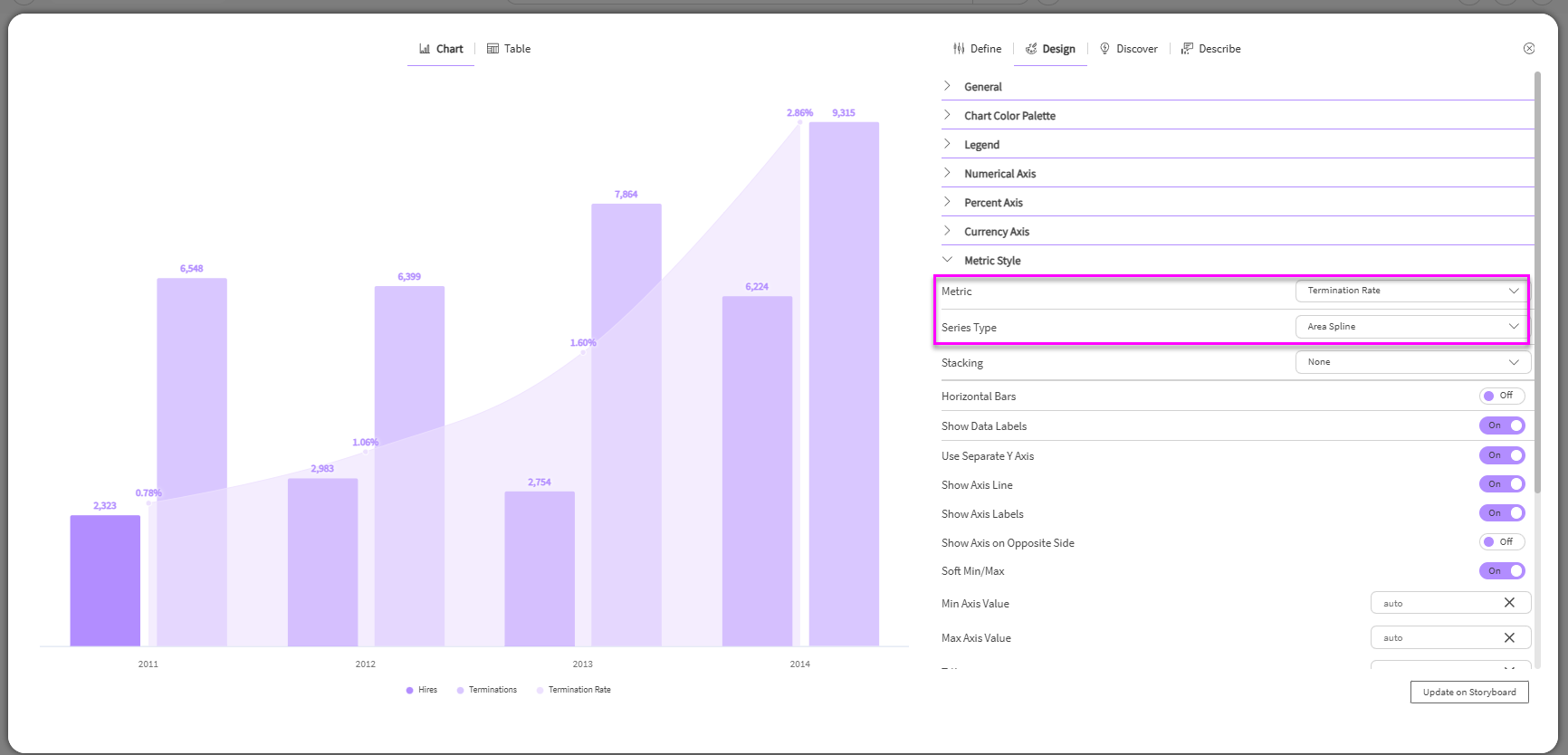

Basic charts can have multiple metrics with different chart types. Under Design > Metric Style, you can select the specific Metric and then choose the Series Type to apply to it.

In the example below Hires and Terminations are assigned to the Series Type of Column and Termination Rate is assigned to the Series Type of Area Spline.

Filtering

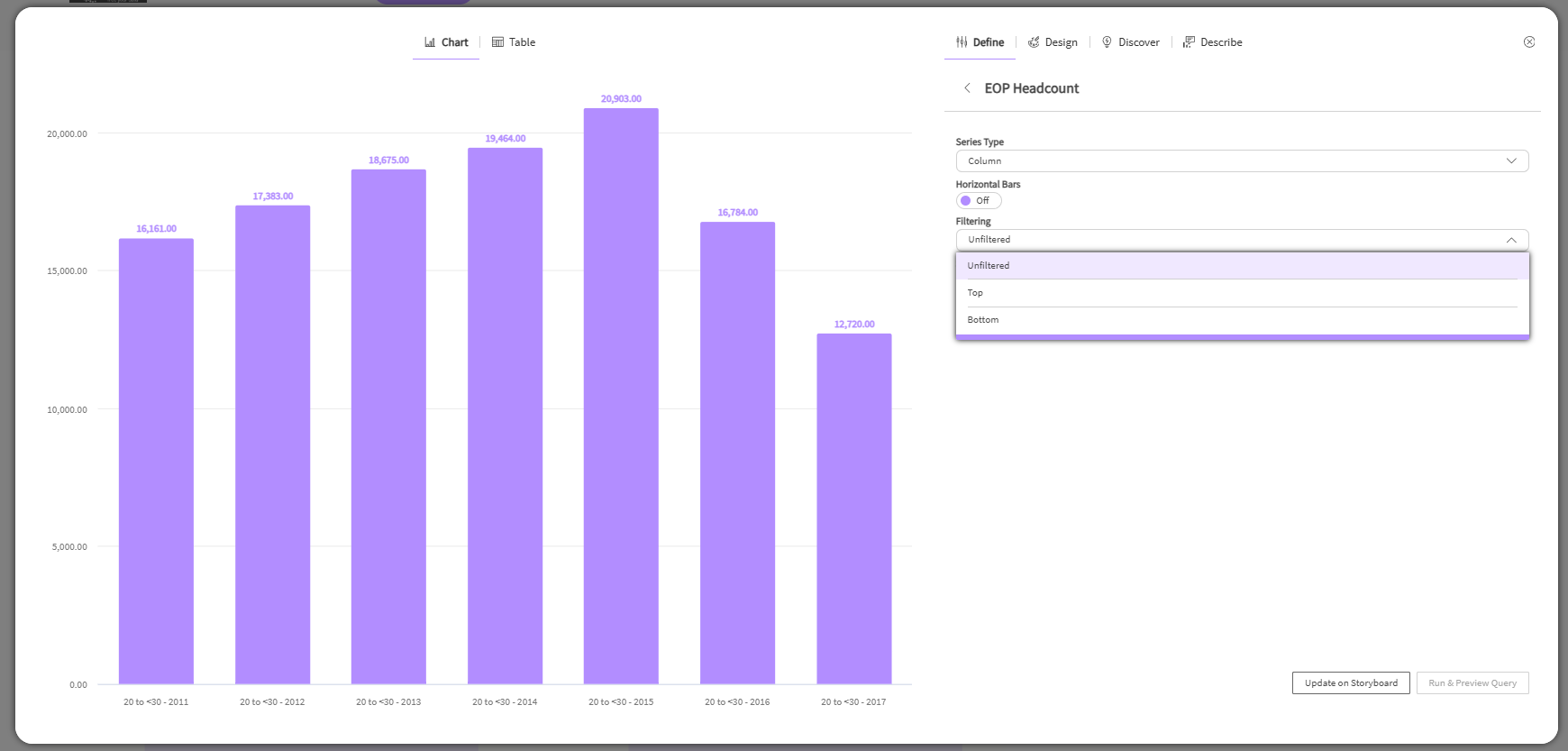

Filtering Top or Bottom (n) results can be applied.  Click on the Metric chip in the Define Panel to display the additional configuration options. By default the Filtering is set to Unfiltered.

Selecting Top or Bottom displays a secondary option for the Count.  Enter the value and ‘Run & Preview Query’ to refine the query and visualization.

These Filtering options can also be found under the Design tab > Metric Style > Filtering and Count. An “Update Query” needs to be run.

Sorting

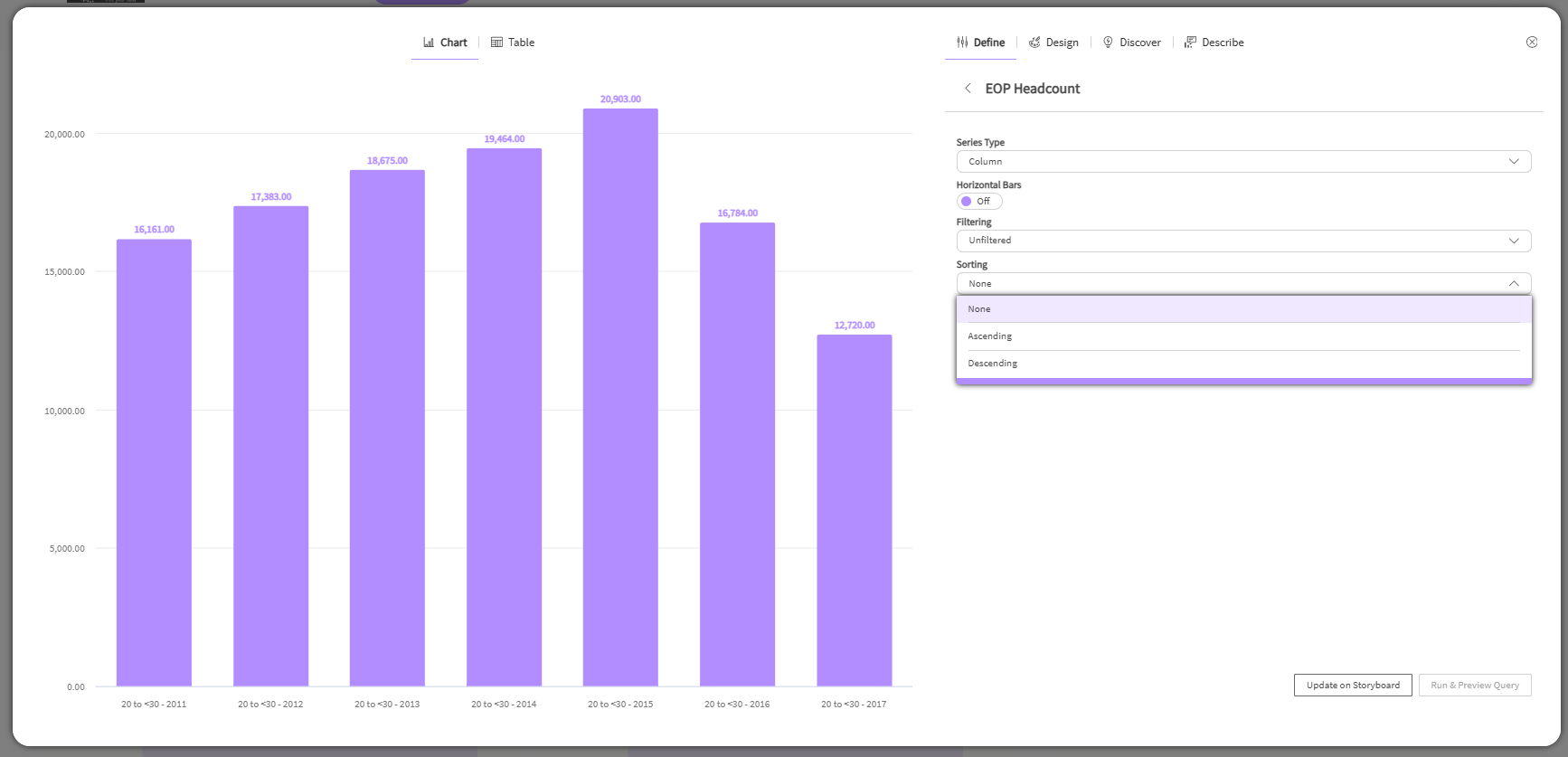

Sorting the chart can occur by clicking on the Metric chip in the Define Panel to display the additional configuration options. By default Sorting is set to None.

Selecting Assending or Descending displays sorts as expected. In the example below the Sorting option of Descending has been selected.
